Solar Panel Making Machinery Automatic Solar Module EL Defect Tester

Test the solar cell crack,breakage, black spot,mixed wafers,process defect,cold solder Joint phenomenon.

WhatsApp :

Inquiry Now!

Solar Panel Making Machinery Automatic Solar Module EL Defect Tester

Machine Function

Automatic solar module EL defect tester is used to test the solar module Crackbreakage, Black SpotMixed WafersProcess DefectCold Solder Joint phenomenon.

Technical Parameter

Equipment performance

Description

Remarks

Testing cycle (s)

≤24s


Testing range (mm)

Conventional modules, double-glazed modules, film-mounted   modules and halved modules.

156 polycrystalline/monocrystalline 72-cell module: 1,956 * 992   * 40 mm (46 mm)

60-cell module: 1,650 * 992 * 40 mm (35 mm)



Universal for before and after the layer

Feeding method

Feeding by the long edge, conveying by the belt, adjustable conveying spacing.


Testing method

Upward perpendicular projection of four cameras and imaging by three movements of the modules.


Human-machine interface

Testing mode: For normal testing on the production line, as well as for monitoring and volume production statistics.

Assembly line mode: For transmission on the assembly line, without EL testing.

Commissioning mode: Individual control for each module of the   equipment for commissioning and maintenance


Software

EL   tester

1)    Automatic module barcode recognition

2)    Monocrystalline auxiliary diagnosis

3)    MES interfacing

4)    Query

5)    Other functions

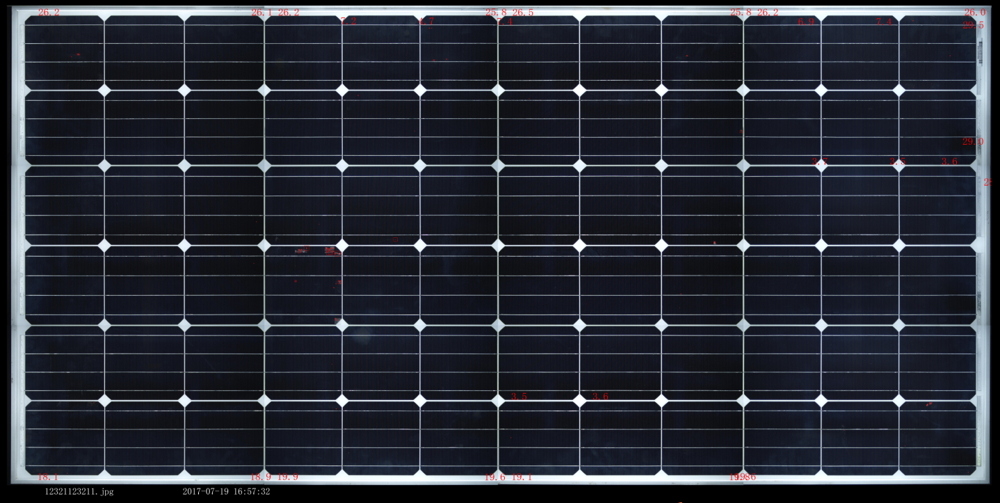

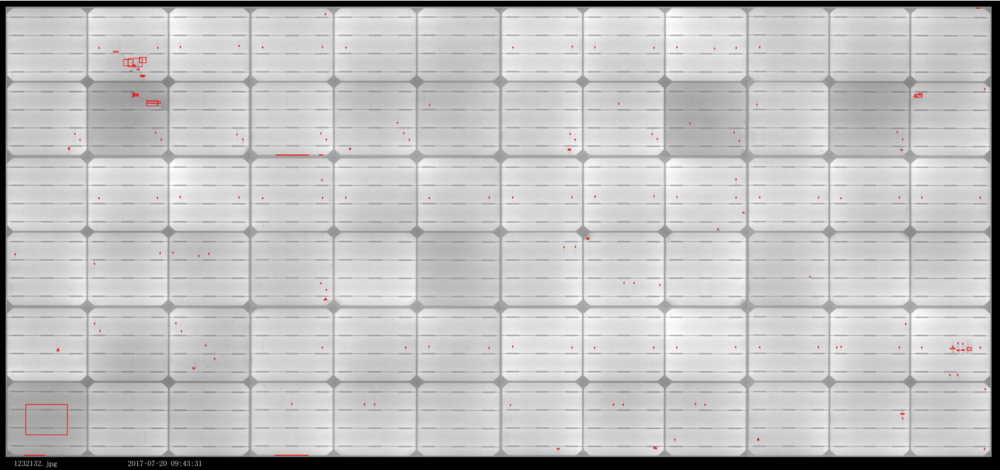

Image storage

Save the EL pictures in the name of the module barcode and   upload to MES system


Detail picture

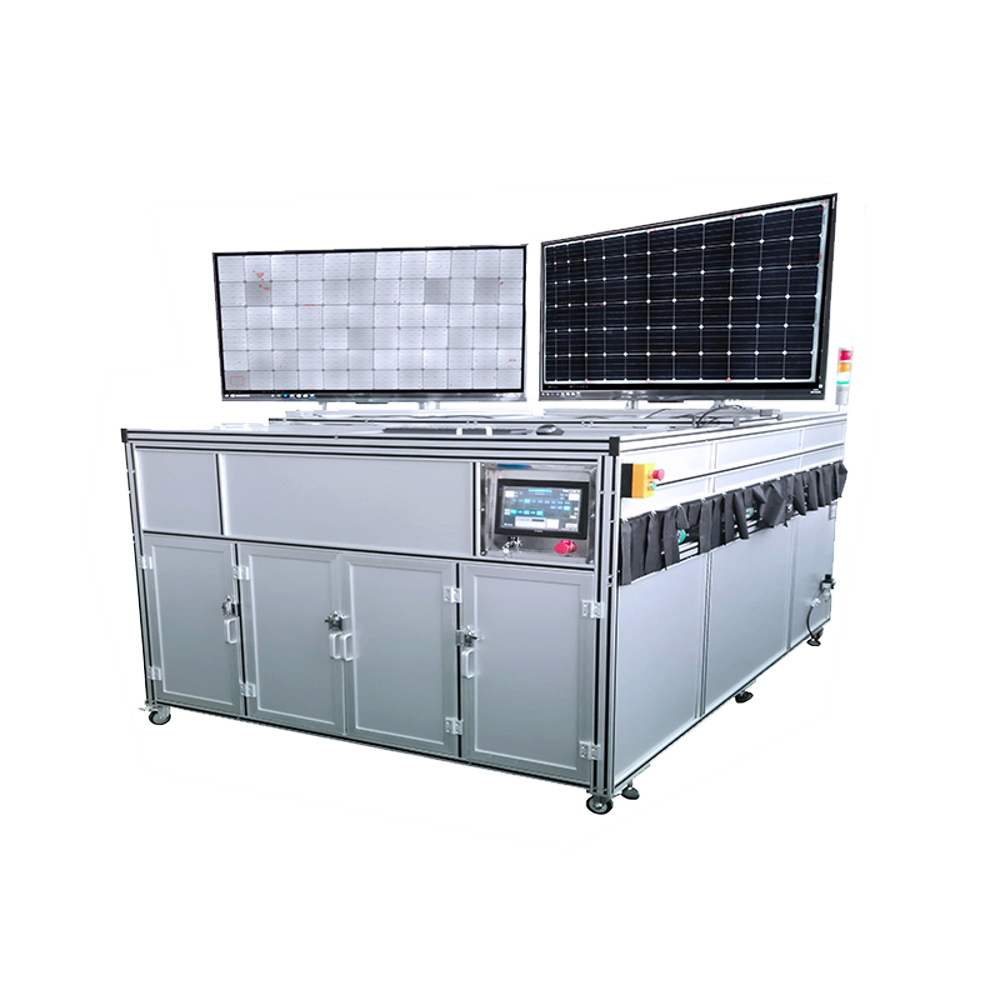

Automatic Solar Module EL Defect Tester

Solar Module EL Tester
