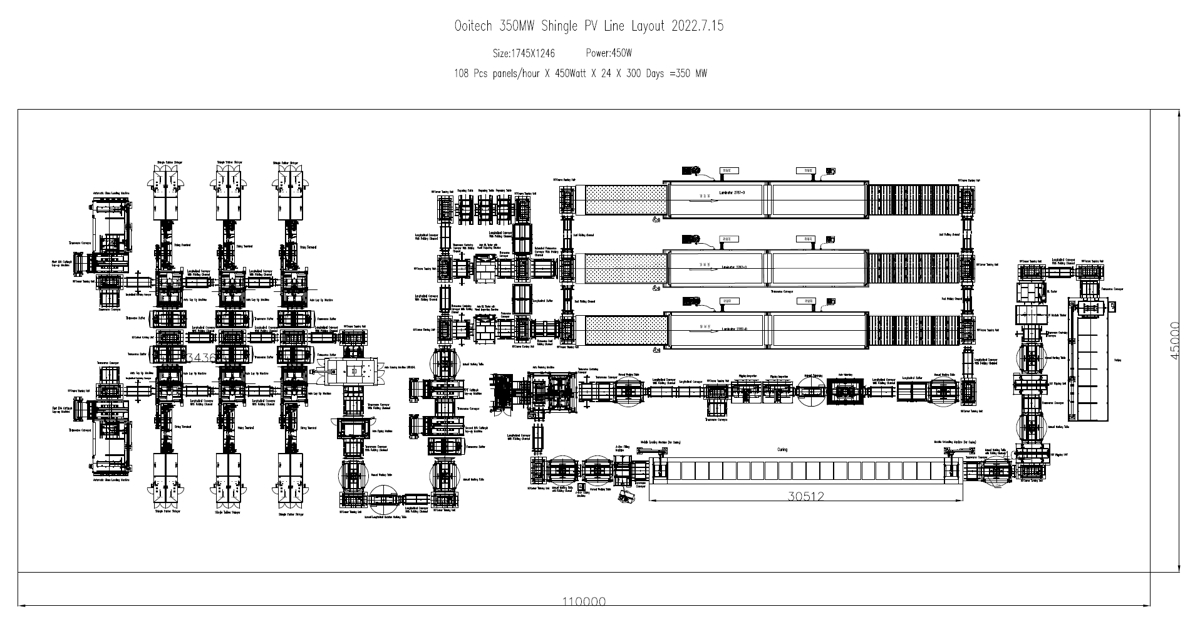

Automatic Shingled Solar Cell Tabber Stringer-Solar Panel Production Line
Machine Function
Automatic shingled solar cell tabber stringer is an automatic equipment to weld the solar cells into strings by curing the conductive adhesive and collect the welded strings (or transfer them directly to the later process). The equipment adopts various advanced automation technologies such as PLC, linear module, servo motor, dispensing system, curing unit, and discharging mechanism to achieve fully automatic processing from cell loading to string discharging.
Technical Parameter
Product Model | SL-30C |
Production capacity | 3000≥PCS/H(1/5,1/6,1/7*210mm) 5000≥PCS/H(1/5,1/6*26-78mm) |
Overlapping accuracy | ±0. 15mm |
Cell Inspection | CCD camera detection (Busbar/missing corner/hidden crack) |
Maximum operation speed | 1000mm/s Adjustable |
Spraying method | Spray coating; glue width 0. 251-mm adjustable; glue application volume adjustable |
Number of glue heads | 2 pcs |
Number of basket | 3 pcs; 250 pcs/basket. |
Feeding method | Rotary loading; non-stop for feeding basket. |
Cell defect rate | ≤0. 2% ( A grade cells) |
Equipment failure rate | ≤3% |
Cell overlap volume | 1-10mm Adjustable |
Curing method | High temperature curing (PID temperature control system, Temperatures in the 6 zones are adjustable, real-time temperature monitoring (Real-time monitoring) |
Positioning method | Mechanical positioning |
Electrical system | PLC+touch screen+servo+module |
Human-machine Interface | Touch screen display, friendly interface for easy operation |
Fault Alarm | Real-time fault alarms |
Device color | Main body traffic white + sky blue |
Power supply | Three-phase five-wire, 380VAC/Hz50 |
Rated power | 4KW |
Air Source | 68-Bar; 600L/min ; Inlet pipe diameter: 12mm |
Equipment size | L*W*H 4790*1250*1876mm(without alarm light) |
Weight | 1400Kg |
Software | Lifetime free upgrades |

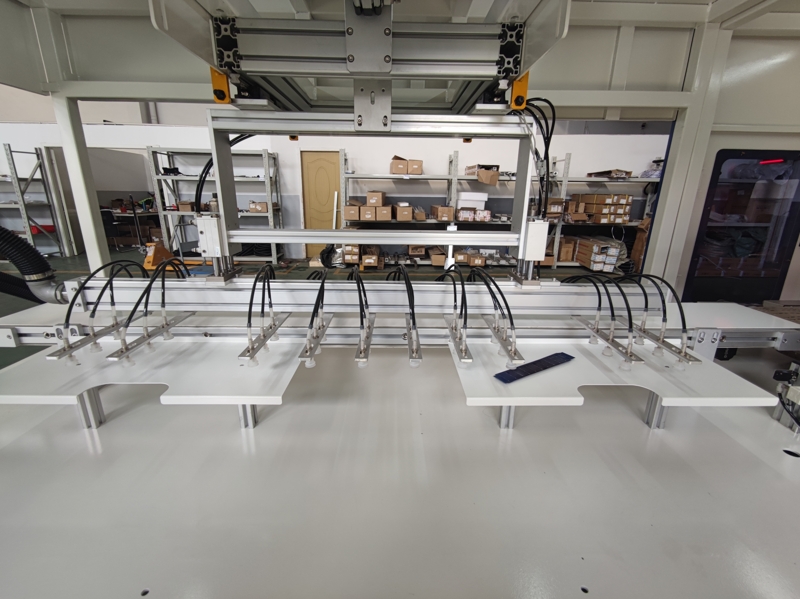

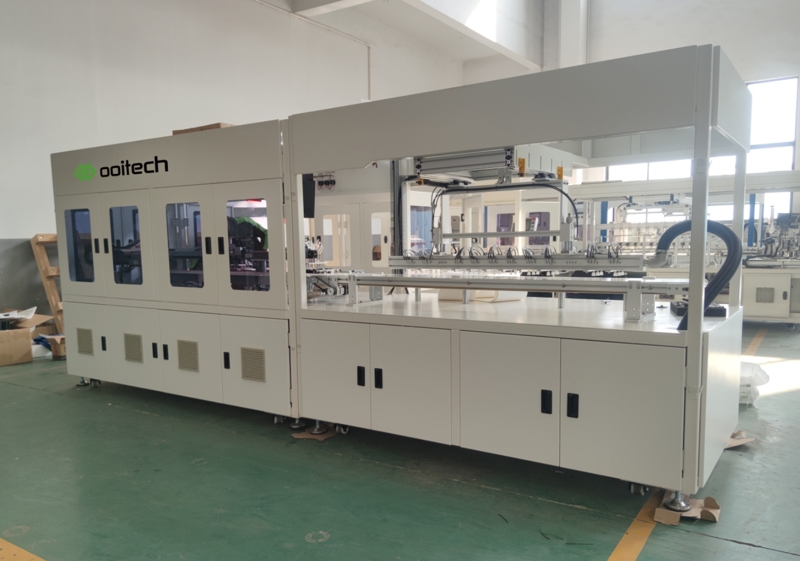

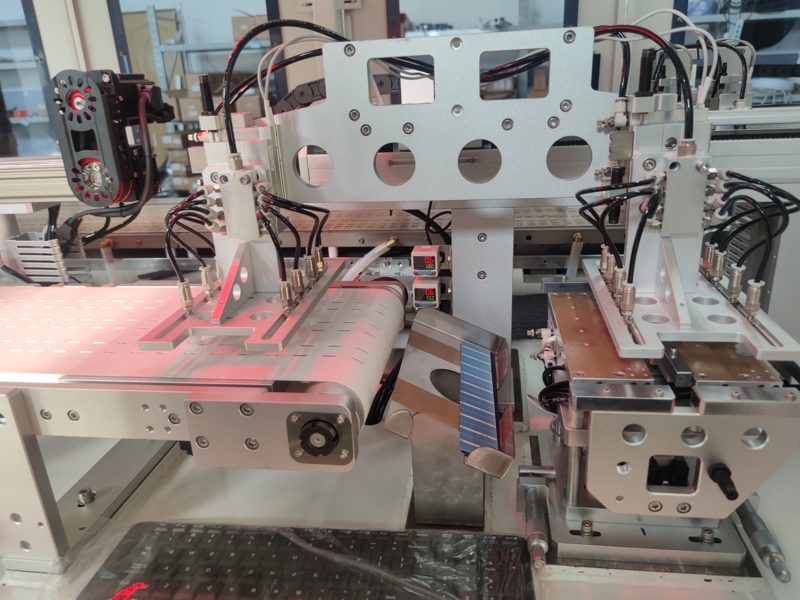

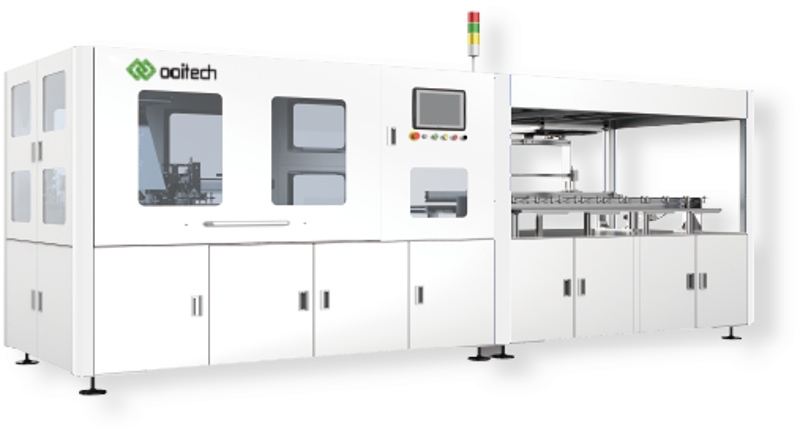

Detail picture
