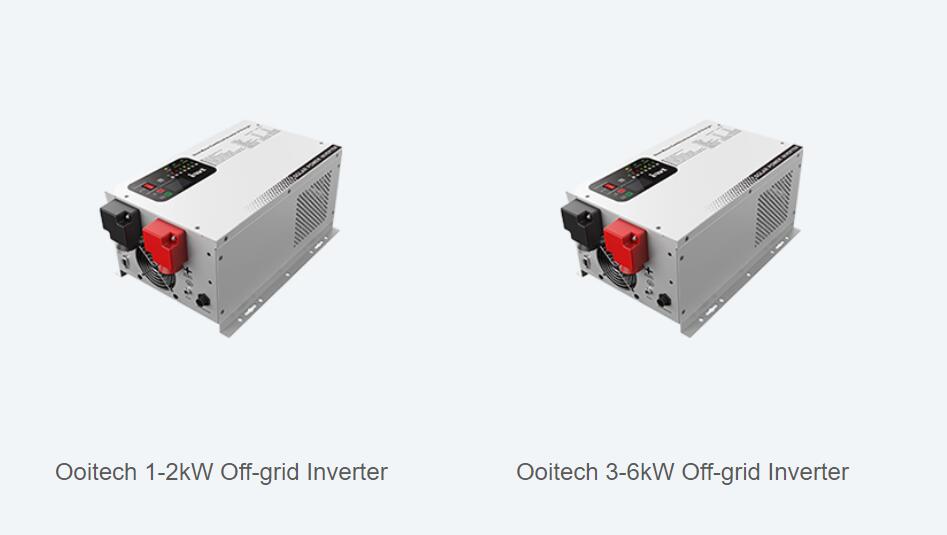

• off grid solar inverter 1kw to 60kw

off grid solar inverter 1kw to 60kw

WhatsApp :

Inquiry Now!


Ooitech3012C/E

Ooitech3024C/E

Ooitech4048C/E

Ooitech5048C/E

Ooitech6048C/E

Line mode
AC input voltage (V)

220/230/240

Rated frequency (Hz)

50/60(auto detection)

Transfer time (ms)

(AC to DC or DC to AC):10ms (typical)

Bypass relay current (A)

30

40

Invert mode
Output voltage waveform

Sine wave

Rated output power (VA) / (W)

3000/3000

4000/4000

5000/5000

6000/6000

Rated output voltage (V)

220/230/240(±10%)

Rated output frequency (Hz)

50±0.3/60±0.3

Efficiency

>88%

Over-load protection

(110%<load<125%) ±10%:="" fault(shutdown="" output)="" after="" 15min;(125%<load<150%) ±10%:fault(shutdown="" output)="" after="" 60s;="" load>150%±10%:Fault(shutdown output)after 20s

Peak power (10s) (VA)

11000

12000

15000

18000

Output breaker current (A)

30

40

DC input voltage (V) /
Min. DC start voltage (V)

12VDC mode:12/11; 24VDC mode:24/22

48/44

DC input voltage range (V)

10.0~16.0, ±0.6Vdc:12VDC mode(*2 is 24VDCinput mode, *4 is 48VDC input mode)
12VDC mode:low alarm:10.5V; shut down:10V; high fault:16V; high recovery:15.5V)

Charge (Line)
Charge current (A)

75

50

35

40

50

Battery voltage range (V)

12VDC mode:10-15.7; 24VDC mode:20–31.4

40–62.8

Breaker current (A)

30

40

Over charge protection

Bat. V≥15.7 is 12VDC mode, (*2 is 24VDC input mode,*4is 48VDC mode)every 1s & fault after 60s

Charge (Solar)(E series is not included)
MPPT voltage range (V)

12VDC mode:15-55; 24VDC mode:18-78

50-130

Max. PV input voltage (V)

12VDC mode:70; 24VDC mode:100

200

Max. PV open circuit voltage (V)

12VDC mode:56; 24VDC mode:80

130

Rated charge current (A)

45

60

Max. full load charging efficiency

98%

Battery short-circuit protection

Fuse

General data
Dimension (H x W x D mm)

180x460x264

180x510x264

180x555x264

Weight (kg)

26.3

26

28

33.5

35

Degree of protection

IP20 (forced air, variable speed fan)

Operating temperature range

-15°C to 40°C(-25ºC~60ºC for storage)

Communication interface

RS-485, GPRS, WiFi

Safe certificate / EMC certificate

CE(EN62040-1, EN62040-2)/C2

Factory warranty (years)

1
