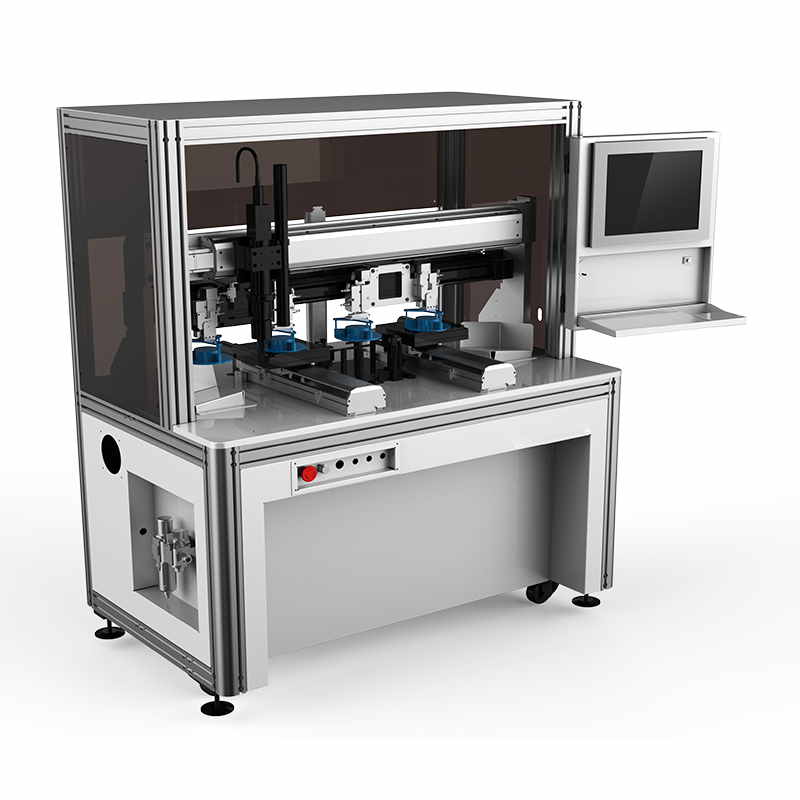

2021 New PV Solar Cell Dicing Machine With Auto Divide
Machine Function
Suitable for arbitrarily divided scribing of monocrystalline silicon and polycrystalline silicon solar cells.
It can realize functions such as automatic material feeding, cell positioning, laser scribing, and boxing. Professional control software, free maintenance, easy operation.
Machine Features
◆Advanced scribing technology: Adopt fiber laser source, good quality laser beam, slim laser scribing line, more uniform solar cell cutting surface, small damage to solar cell, high accuracy cutting.
◆High efficiency: High laser scribing speed, producing capacity can reach 1500 full cells/hour
◆Accuracy positioning: Solar cell full automatic positioning, positioning accuracy ≤±0.1mm
◆High automation level: Solar cell automatic loading and unloading, automatic positioning, automatic scribing.Stable performance, low failure rate, easy maintenance.
Technical Parameters
Model | OLS-2000F |
Laser Power | 30W |
Laser Wavelength | 1064nm |
Scribing Speed | Maximum 500mm/s |
Scribing Line Width | ≤40μm |
Scribing Accuracy | ±0.1mm |
Positioning Method | Mechanical Positioning |
Splitting method | Mechanical splitting |
Scribing Capacity | 1500 full cell/hour (1/2 cell scribing and splitting) |
Breakage Rate | ≤0.15% |
Solar Cell Specifications | 130～156×166mm(width*length) |
Dimension | 1300×760×1550mm |
Net Weight | 0.67 ton |

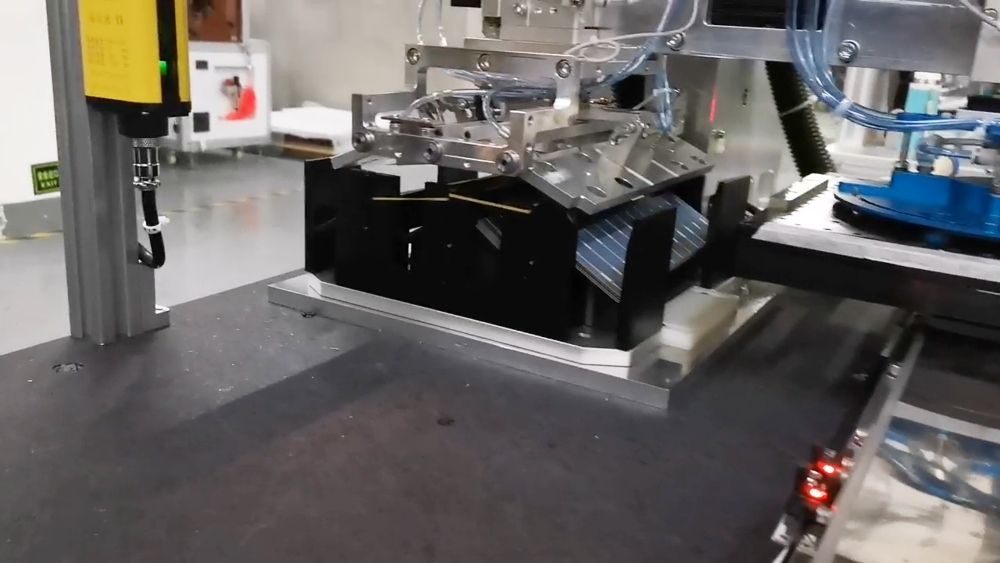

Detail picture
About US
Ooitech, One-stop Solution For Solar Panel Making Machines. Has The Following Required Machinery And Accessories
Ooitech “Turnkey Solution” Includes Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assistance, Solar Power Station installation technical support Etc.
Ooitech focus on:

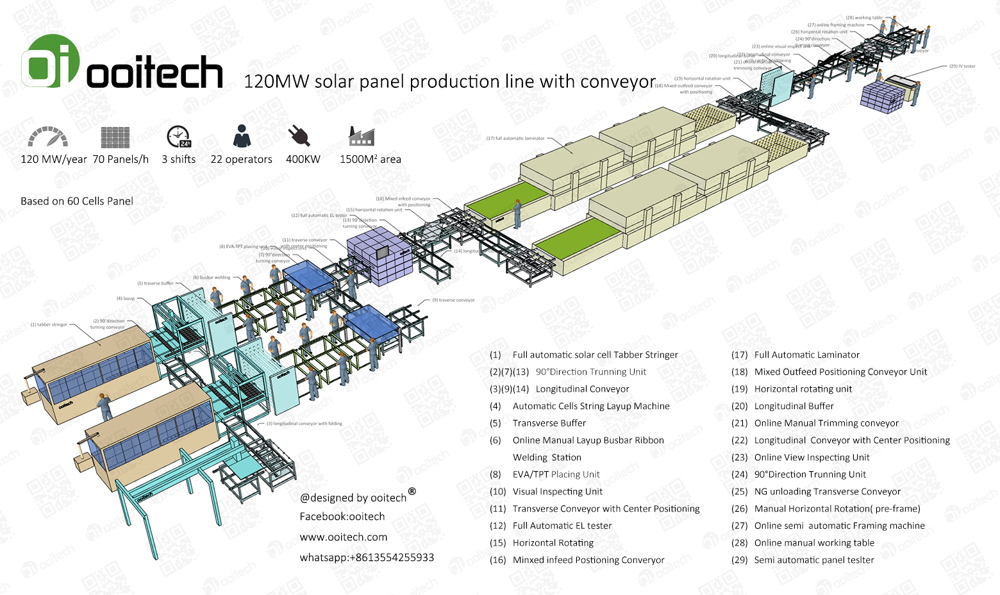

Supply 10MW-500MW Turnkey PV Production Line
Update the traditional PV line to the newest MBB solar panel production line.
Main machinery
