Solar Panel Tester Solar Panel Power Tester IV Tester Sun Simulator

AAAAA 5A solar panel tester, solar panel IV tester, Xenon lamp sun simulator.good price

WhatsApp :

Inquiry Now!

Solar Panel Tester Solar Panel Power Tester IV Tester Sun Simulator

Machine Function


Sun Solar Simulator is used to test the electric performance of Mono-Si or Poly-Si solar modules and record the results in files.



Technical Parameter


MODEL

OSMT-A

OSMT-B

Lamp spectrum

In   line with iec60904-9

spectral   Irradiance distribution requirement(AM1.5)

Light intensity

700_1200W/M2    continuous adjustable

Light intensity non-uniformity

≤±2%   【A】

≤±3%

Light intensity instability of irradiation(STI)

≤±0.5%   【A】

≤±2%

Light intensity instability Non-Uniformity of Irradiance(LTI)

≤±2%

≤±2%

Test results consistency

≤±0.5%【A】

≤±1%

Single flash time

10ms~40ms

10ms

Effective test range

2400×1400mm/5W-650W

Measuring voltage

0-100V(resolution   1mV)

Measuring current

0-20A(resolution   1mA)

Power Supply

AC220V/50HZ/2KVA

Test parameters

Isc、Voc、Pmax、Vm、ImFF、EFF、Temp、Rs、Rsh

Xenon Lamp service time

100,000flash   times

Weight

600kgs

Detail picture

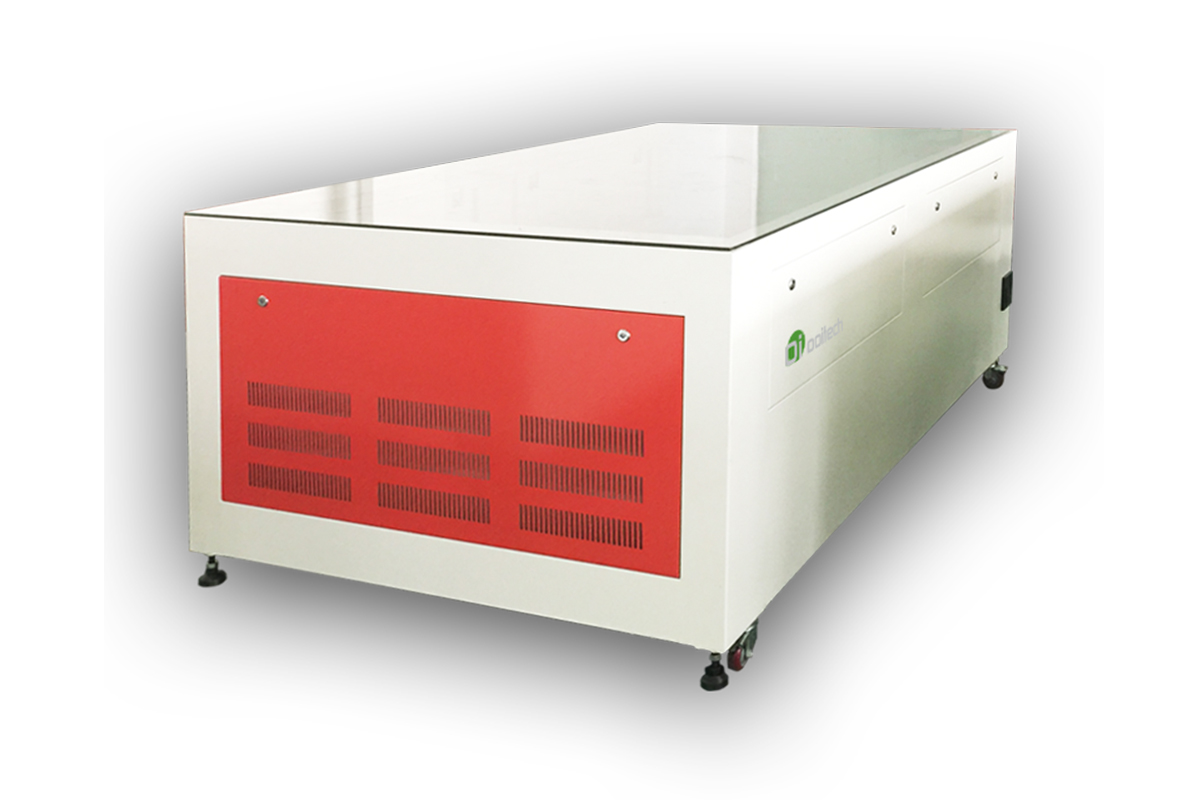

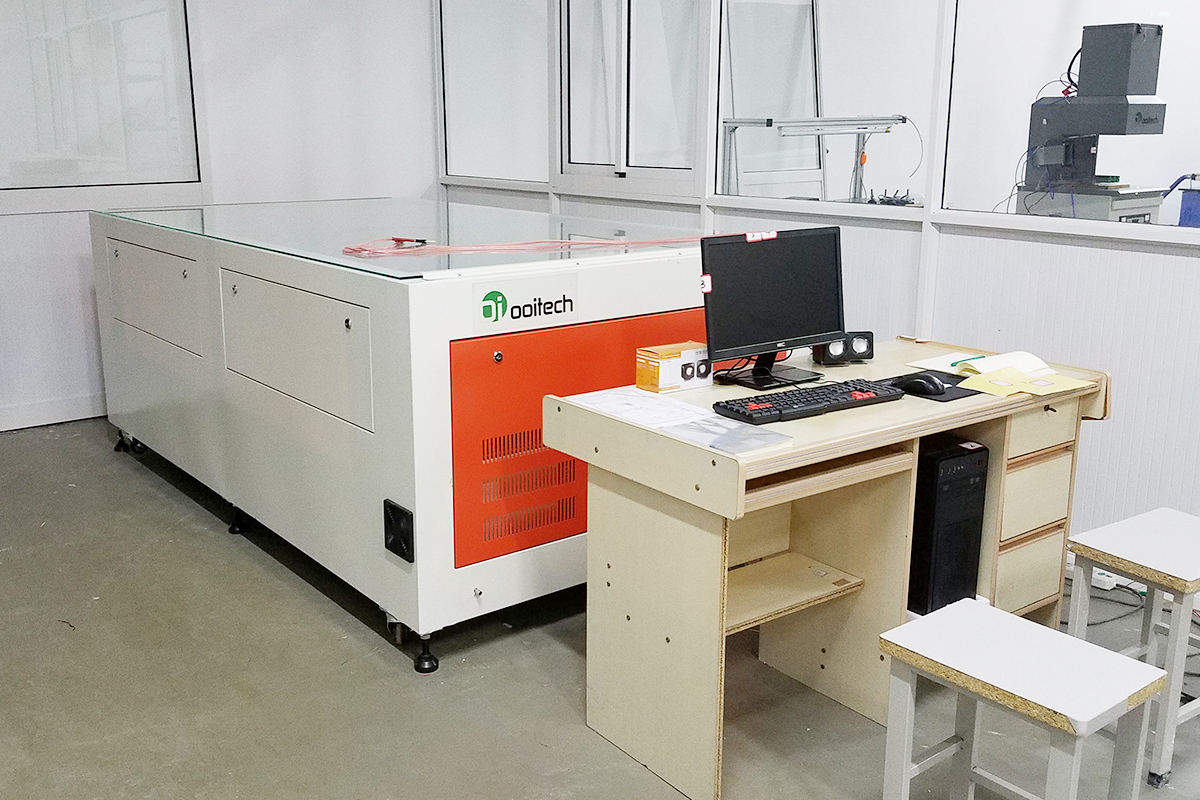

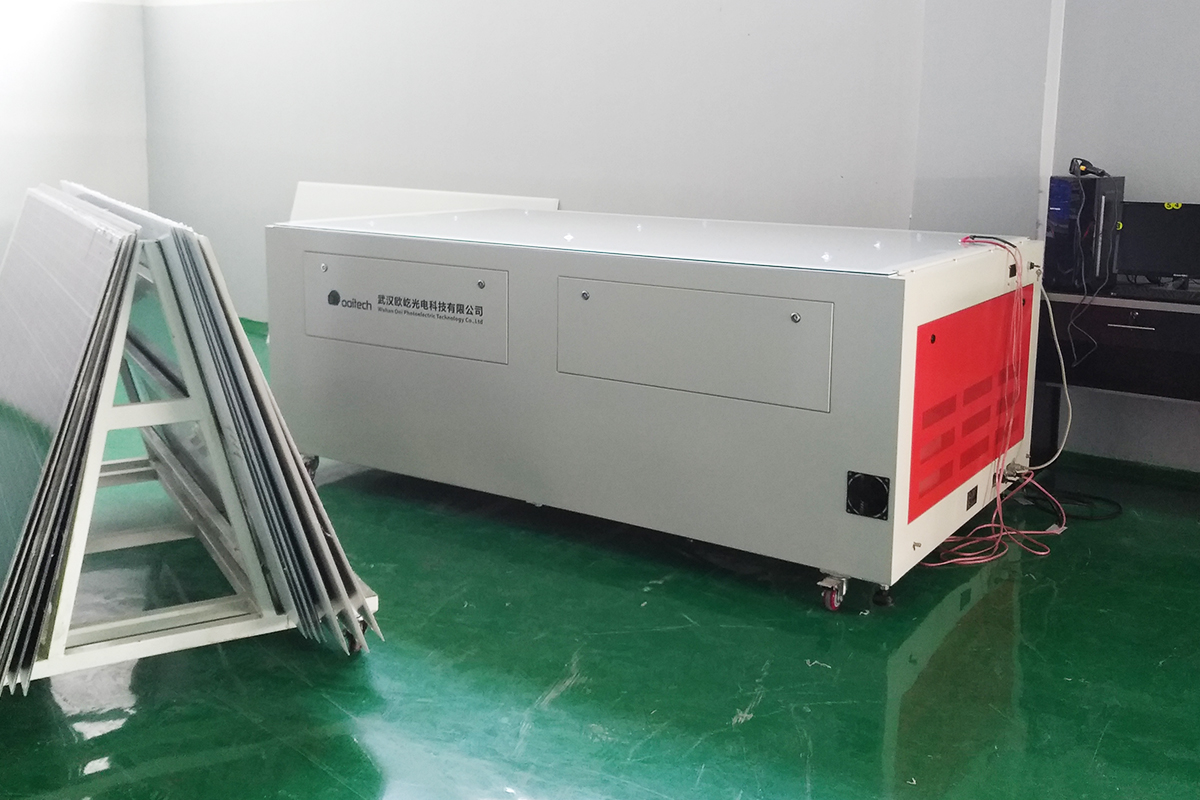

 solar module sun simulator

About US

Ooitech, One-stop Solution For Solar Module Manufacturing Equipment.

Has The Following Required Machinery And Accessories

solar module manufacturing equipment

Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assitance, Solar Power Station installation technical support Etc.

Ooitech focus on:

Supply 10MW-500MW Turnkey Solar Panel Production

Update the traditional PV line to the newest MBB solar panel production line.

Main machinery

Solar Cell Tabber Stringer Machine

Automatic Solder Bussing Machine

Automatic Laminator

High-Speed Automatic Layup Station

Automatic Framing Machine

Electroluminescence Test

Solar Simulator Or IV Tester

Solar Cell Laser Cutting Machine

Solar Ribbon Cutting Machine

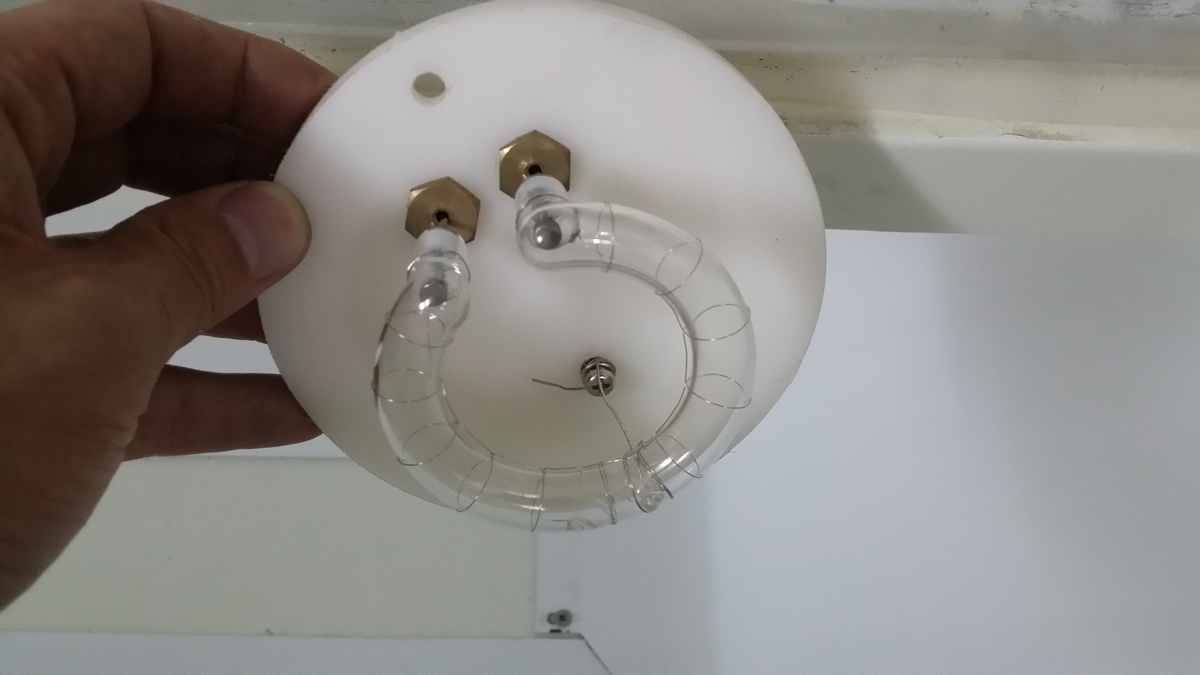

solar panel  tester Xenon lamp

Xenon lamp

panel  tester PCB board

PCB board
