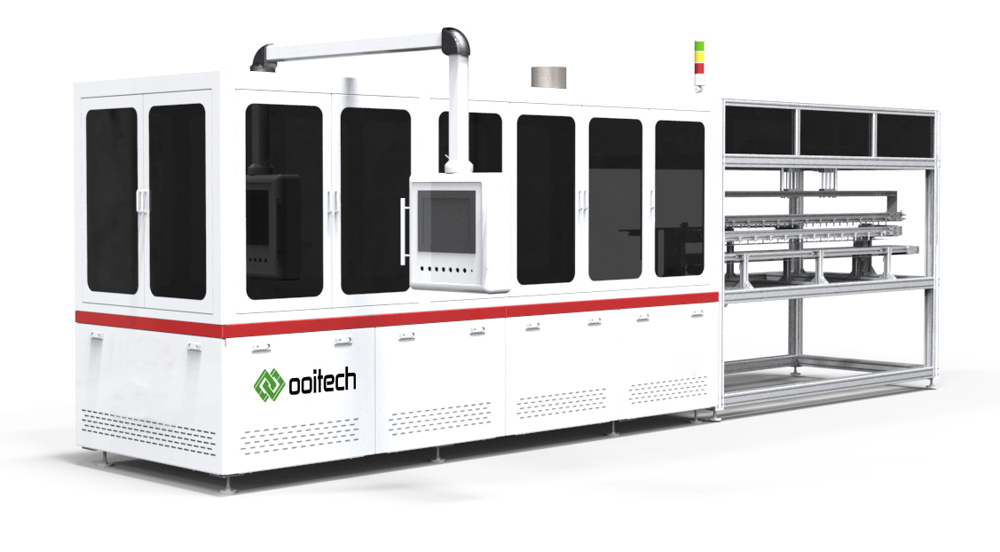

Tabber Stringer - Full Auto Solar Cell Welding Machine

Machine Function

Tabber Stringer is used to weld solar cells to strings; Solar cell stringer machine OCH1500 adopts IR soldering method, servo motor driving and industrial ccd positioning & detection for defective solar cell excluding automatically. The soldering effect, such as cell spacing, cell numbers of single string, soldering temperatures and etc. It can be adjusted according to requirements. Solar cell welding machine OCH1500 can be integrated with automatic layup machine to achieve the composing and locating of solar cell strings on tempered glass.

Technical Parameter

Model specification

OCH-1500

Maximum capacity

1200 PCS/Hour

Size of solar cell

156-166mmCompatible with  1/21/31/4 cell soldering

Thickness of solar cell

0.16-0.3mm

Quantity of bus-bar

5BB, 6BB (fixture switching, customized according to customer   requirements)

Cell spacing

15mm adjustable

String spacing

10-40mm

Max string length

Max 12 full cellsmax 24 half cellsmax length 2000mm

Coincidence degree deviation of ribbon and bus  bar

≤±0.1mm

Ribbon specification

Thickness 0.16-0.28Width 0.9-1.8mm(customized   according to customer requirements)

Breakage rate

≤2‰positive A class

Discharge form

Manual discharge or automatic lay-up discharge

Size

6000×1350×2110mm

Net weight

2200kg

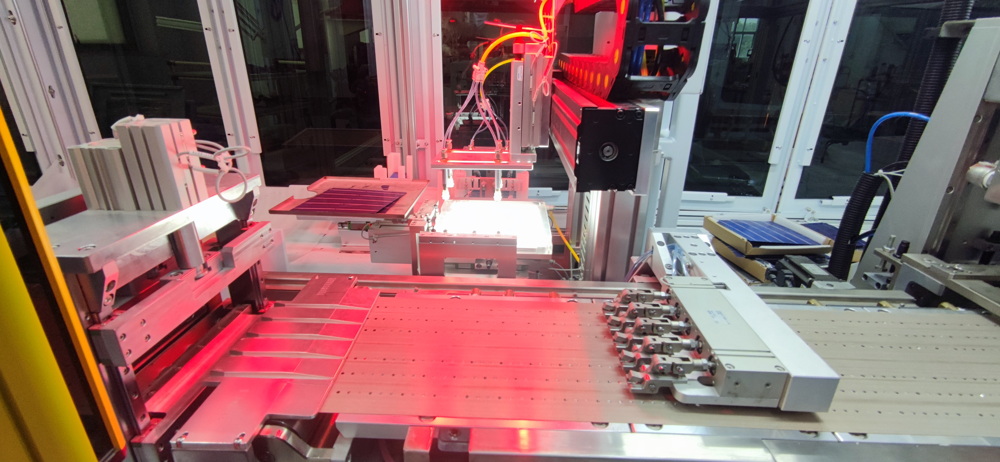

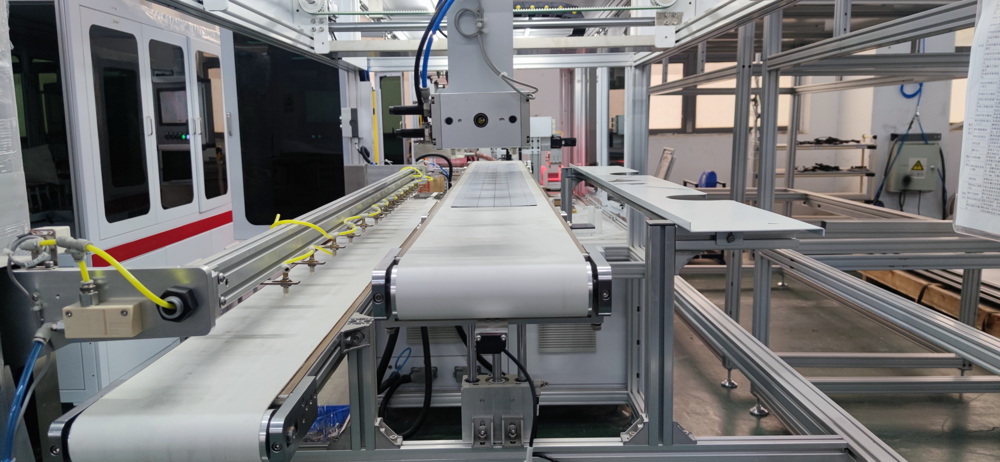

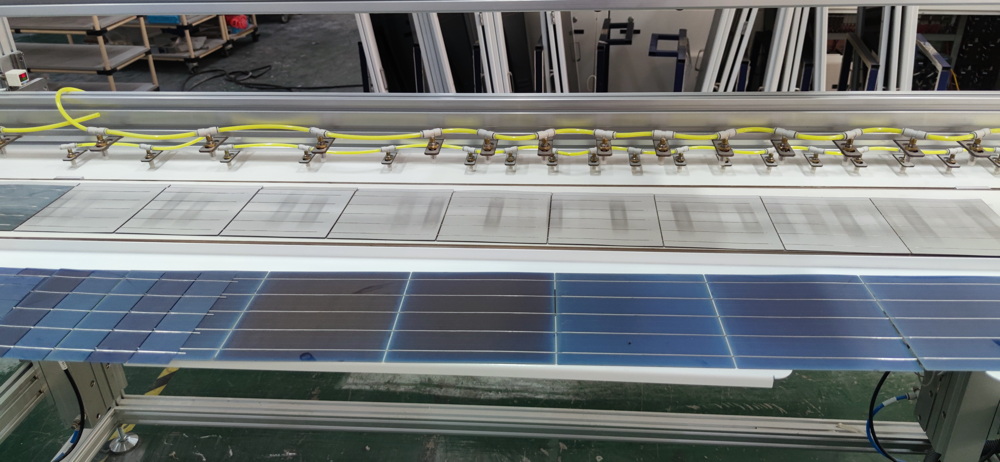

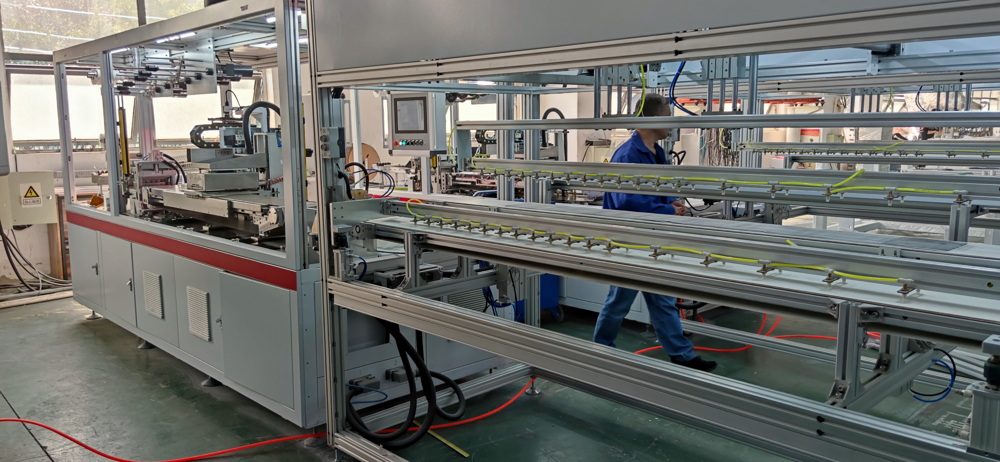

Detail Picture

Solar Cell Stringer

solar stringer machine price

tabber stringer

About US

Ooitech, One-stop Solution For Solar Panel Making Machines.

Has The Following Required Machinery And Accessories

solar panel making machines


Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assitance, Solar Power Station installation technical support Etc.

Ooitech focus on:

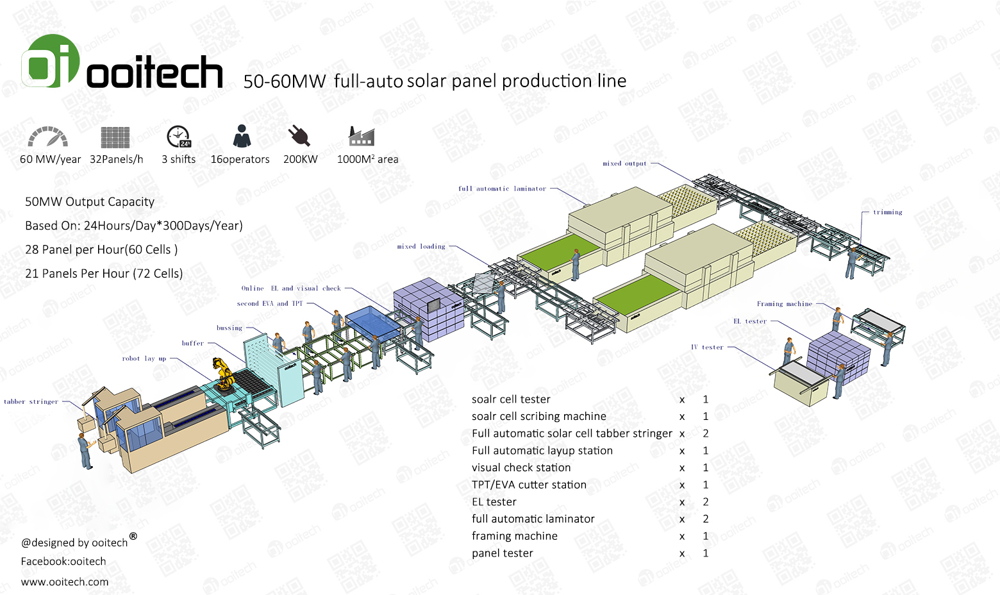

Supply 10MW-500MW Turnkey Solar Panel Making Machines

Update the traditional PV line to the newest MBB solar panel making machines.

Main machinery

Solar Cell Tabber Stringer Machine

Automatic Solder Bussing Machine

Automatic Laminator

High-Speed Automatic Layup Station

Automatic Framing Machine

Electroluminescence Test

Solar Simulator Or IV Tester

Solar Cell Laser Cutting Machine

Solar Ribbon Cutting Machine
