Automatic Bussing Machine

Auto bussing machine adopts the method of separating the cell string from the glass, and grab the cell string in the air, then to interconnected solder the head, middle and tail bus bar of the middle wire edition module at a certain height; It has the fun

WhatsApp :

Inquiry Now!

Automatic Bussing Machine

Machine Function

Adopt the method of separating the cell string from the glass, and grab the cell string in the air, then to interconnected solder the head, middle and tail bus bar of the middle wire edition module at a certain height; It has the function of a roll feeding bus bar, bending U and L leads upwards.

Technical Parameter

MODEL

ODH180-S

Cell specification

166/9BB main busbar distance   16.79mm(other cell is optional, which can be upgraded upon payment.)

Module specification

6 strings*10pcs half   cell*2

6 strings*12pcs half cell*2

cell distance-0.5--4mm,   string distance 1-6mm.

Glass specification

width 980-1400 *length   1630-2500

Cycle

20S(exchange cycle of the   transmission glass is 4.5s/module, thickness of the bus bar 0.35mm)

Soldering method

electromagnetic

Fragment rate

0.2 (as per pcs)

Pressure

0.6—0.8MPa

Flow rate

2 m³/min

Main pipe specifications

outer diameter φ16 (2   pieces)

Voltage

Three-phase five-wire   380V/220V

Frequency

50-60Hz

Power

Peak 30KW, average 20KW

Size

4805×4620 (including two   pipelines)×2260mm

Detail picture

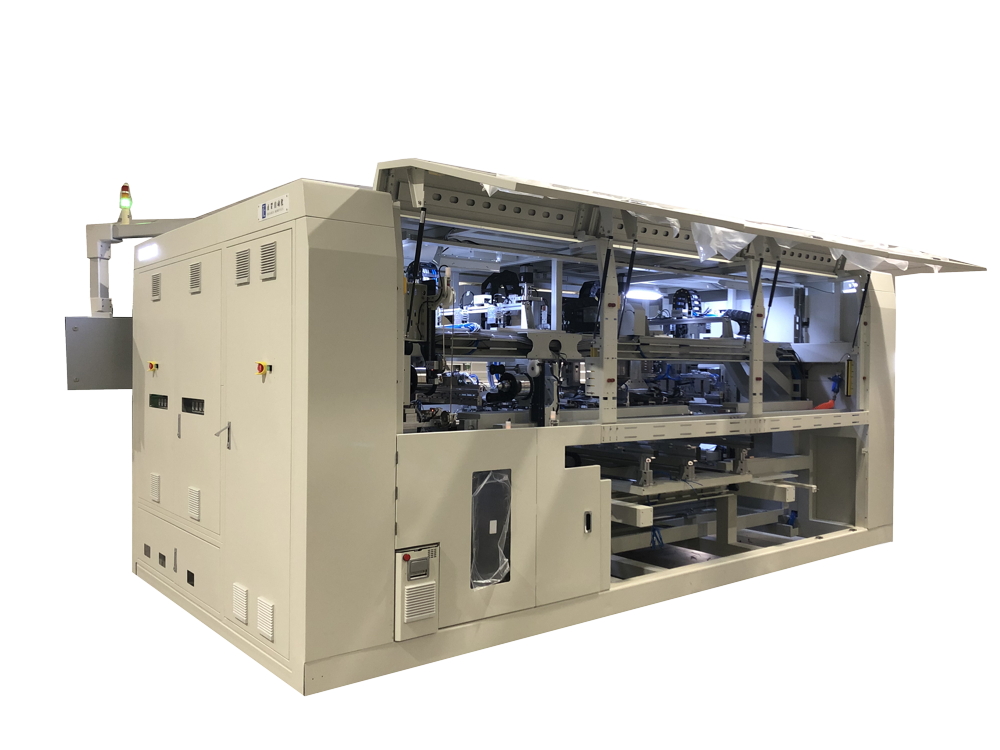

auto bussing machine

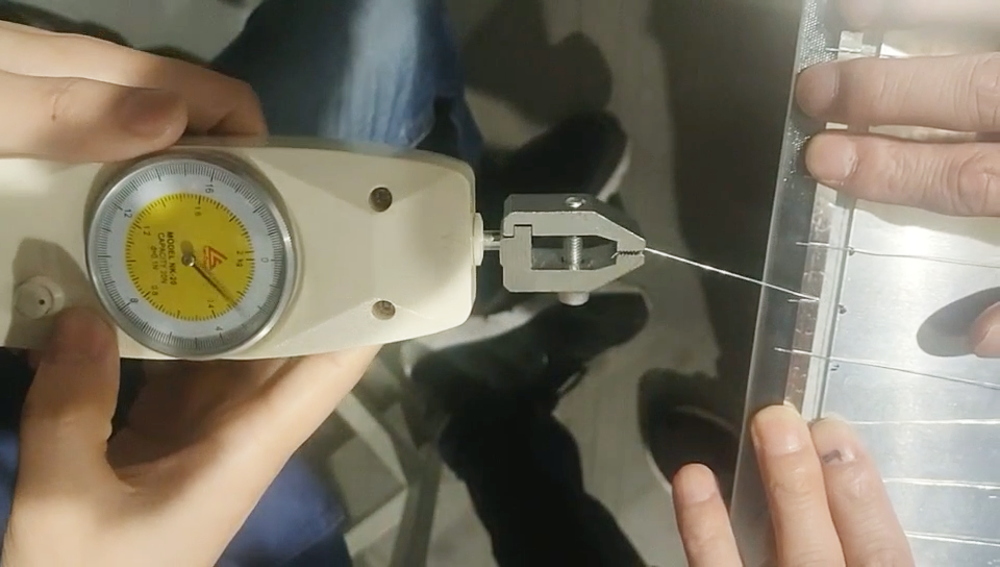

auto soldering bussing machine
