New High-Speed Fiber Laser Scribing Machine for Solar Cell

Machine Function

New high speed fiber laser scribing machine for solar cell is used to scribe or cut the solar cells and silicon wafers in solar PV industry, including the mono-si ( mono crystalline silicon) and poly-si ( poly crystalline silicon) solar cells and silicon wafer.

Machine Features

1. Using the 1064nm infrared light source, fixed optical path, good beam quality, thin laser scribing width, small heat-affected zone. cell cutting section is more neat, less damage to the  solar cell, and cutting high precision

2. High-speed cutting solar cells, max speed could be 4000 PCS Per hour.

3. Industrial CCD detection system

Technical Parameter

Model

OLS-4000

Laser wavelength

1064nm

Laser power

60W

Scribing width

40μm

Scribing speed

550mm/s

Laser Repetition Rate

25KHz-2000KHz

Center Positioning Accuracy

CCD   center positioning: ±0.1mm

Applicable Cell Size

156*156mm-210*210mm

Thickness Deviation of the Same batch of   cells

±0.1mm

Cell Size Deviation

0.15mm

Divide Equally

1/2   pieces ( can update to 1/3 or 1/4 pieces)

Scribing Depth

0~200um

Cell Thickness

0.15-0.3mm

Capacity

3400pcs   cell/hour (full cell)

Fragmentation Rate

0.1%

Working power

380V/50Hz/10kvA

Suitable solar cell

156*156-210*210mm

Heat Affected Zone

100 um

Air Compressor

0.7MPa,   80L/min

Machine Dimension

2550*2100*2000mm

Weight

2000KG

Detail picture

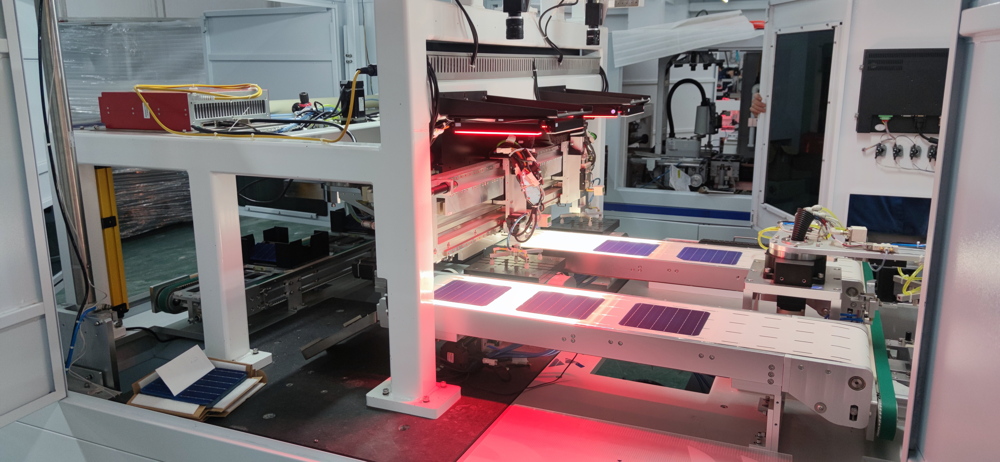

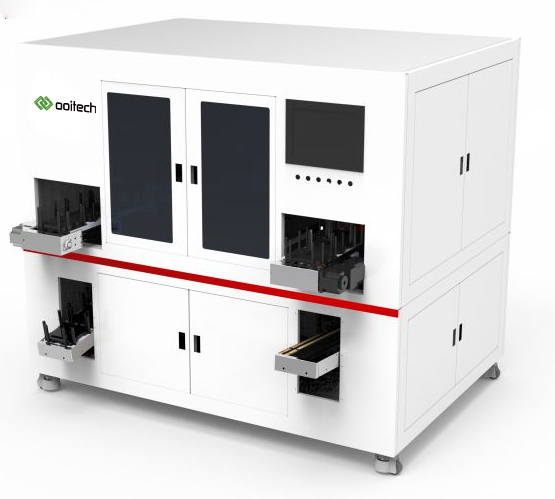

High-speed fiber laser scribing machine for solar cell

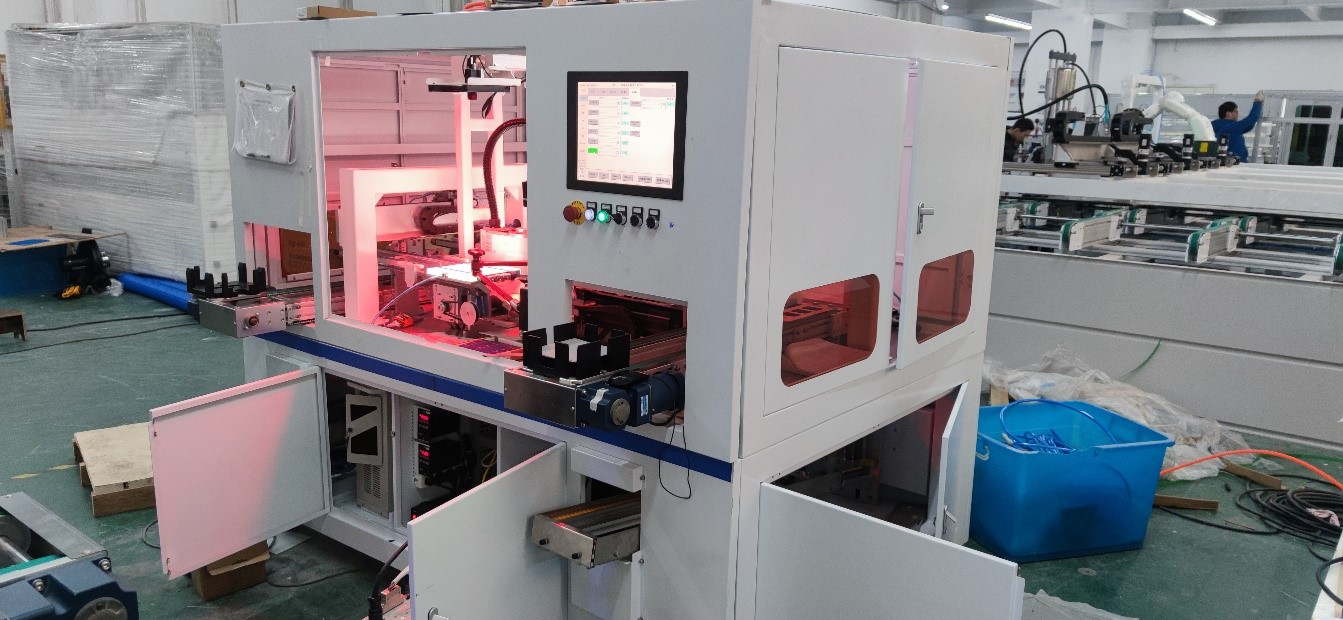

solar cell laser cutting machine
