Double Chamber Automatic Solar Laminator Machine for Building solar panels

Double chamber automatic solar laminator machine is one of the most critical processes in the solar panel manufacturing production flow, it ensures the quality of solar panel.

WhatsApp :

Inquiry Now!

Double Chamber  Automatic Solar Laminator Machine for Building solar panels

Machine Function

Double chamber automatic solar laminator machine is a mechanical device that presses multiple layers of materials together.

Technical Parameter

Operate Mode

Full   Automatic

Heating Mode

Oil   Heating

Lamination area

5800x2600

Double   chamber

Power Supply

AC380V   50Hz

Three   phase five Wires

Rated   Power:185kw

Average   Working Power: 95KW

Laminate Height

35mm

Temperature Uniformity

≤±1

Temperature Precision

±2

Vacuum time

5~30Min

Temperature Range

30-180

Vacuum Degree

40-100Pa

Air Supply

0.60.8MPa

Compressed air flow   required

≥800L /Min

Working period

≤9Min

Operating platform

Touch screen +PLC

Chamber

1   laminate Chamber 1 curing chamber

Loading & Unloading

Convey   belt loading

stainless   steel rollers discharge

Buffer   unloading optional

Work cycle

≤9min

Temperature Control   Point

5

Life

≥10   years

Size

21.3m×3.58m×1.8m

Vacuum pump

2X-70+ZJP600/2X-70

Heating Power

72KW*2

range of application

Can   laminate single crystal, polycrystalline, double glass solar modules

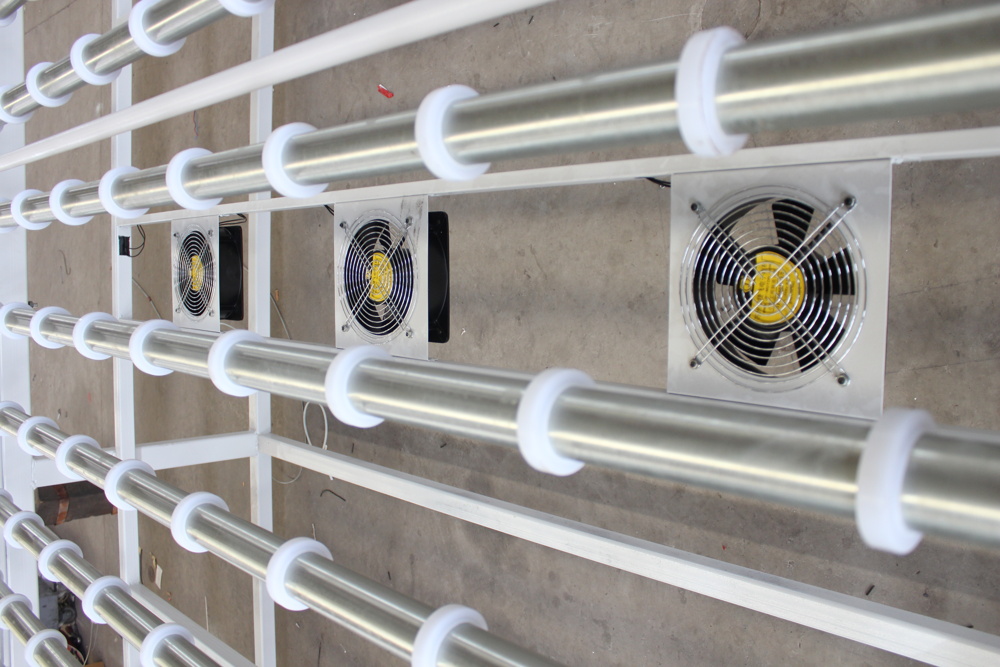

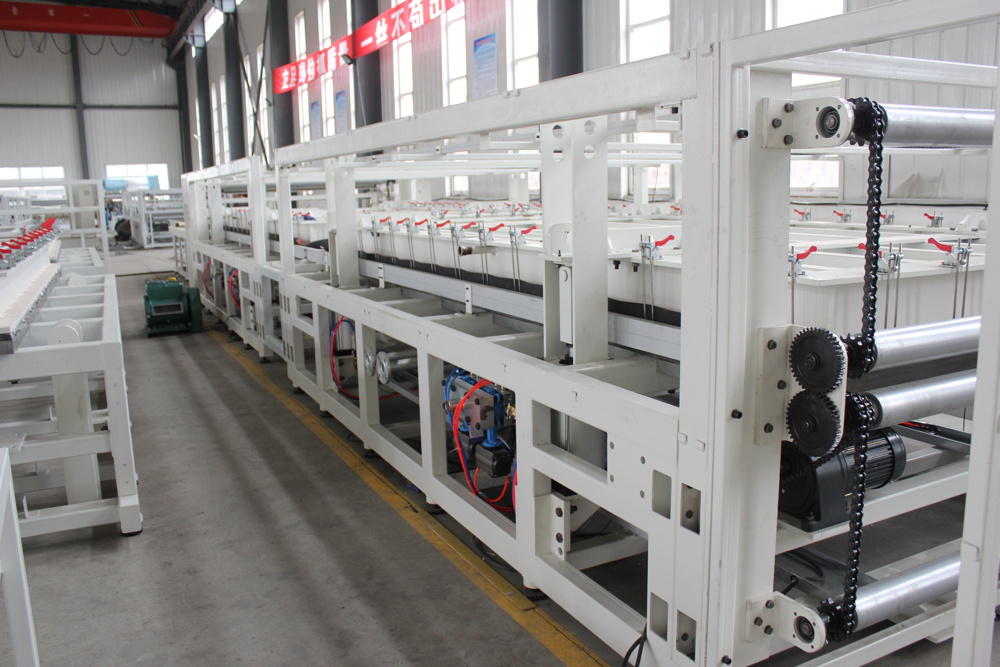

Detail picture

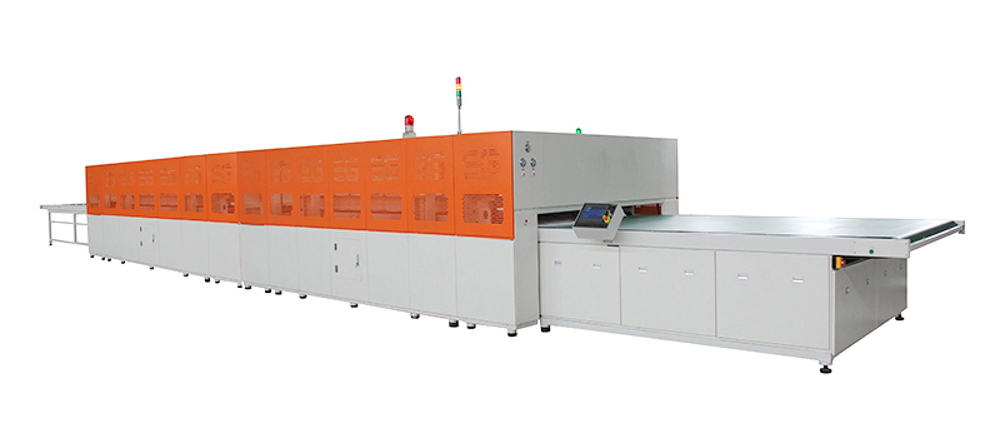

solar laminator machine

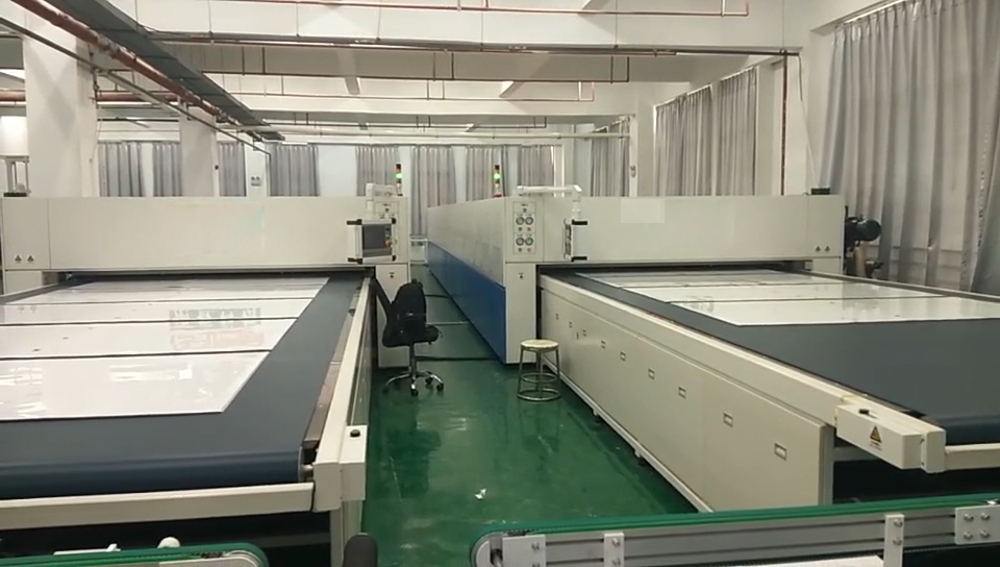

Laminator Machine

About US

Has The Following Required Machinery And Accessories

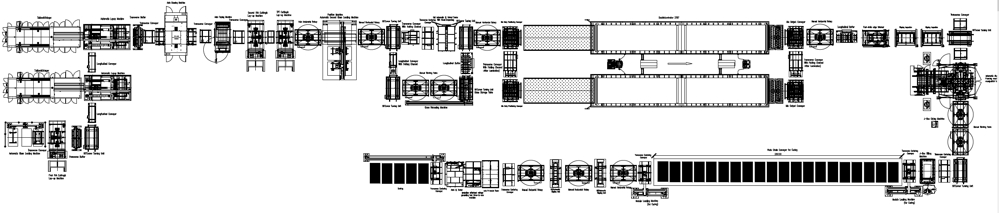

PV Module Manufacturing Line

Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assistance, Solar Power Station installation technical support Etc.

Ooitech focus on:

Supply 10MW-500MW Turnkey PV Production Line

Update the traditional PV line to the newest MBB solar panel production line.

Main machinery

Main machinery

Solar Cell Tabber Stringer Machine

Automatic Solder Bussing Machine

Automatic Laminator

High Speed Automatic Layup Station

Automatic Framing Machine

Electroluminescence Test

Solar Simulator Or IV Tester

Solar Cell Laser Cutting Machine

Solar Ribbon Cutting Machine

Back Contact Back Contact Cell Welding Machine
