Solar Cell Laser Scribing Machine Solar Cell Cutter

Solar cell laser scribing machine is used to scribe or cut the Solar Cells and Silicon Wafers in solar PV industry, including the mono-si (mono crystalline silicon) and poly-si (poly crystalline silicon) solar cells and silicon wafer.

WhatsApp :

Inquiry Now!

Solar Cell Laser Scribing Machine Solar Cell Cutter

Machine Function

Solar cell laser scribing machine solar cell cutter is used to scribe or cut the Solar Cells and Silicon Wafers in solar PV industry, including the mono-si (mono crystalline silicon) and poly-si (poly crystalline silicon) solar cells and silicon wafer.

Technical Parameter

Model

OLS-2000S

Laser   wavelength

1064nm

Laser power

30W

Scribing   width

40μm

Scribing   speed

500mm/s Adjustable

Scribing   accuracy

±0.1mm

Working area

245x245mm

Temperature   control precision

0.5°C

Working   power

220V/50Hz/3kvA

Working   table

negative pressure absorbing and dust   elimination

Cooling   method

Forced air cooling

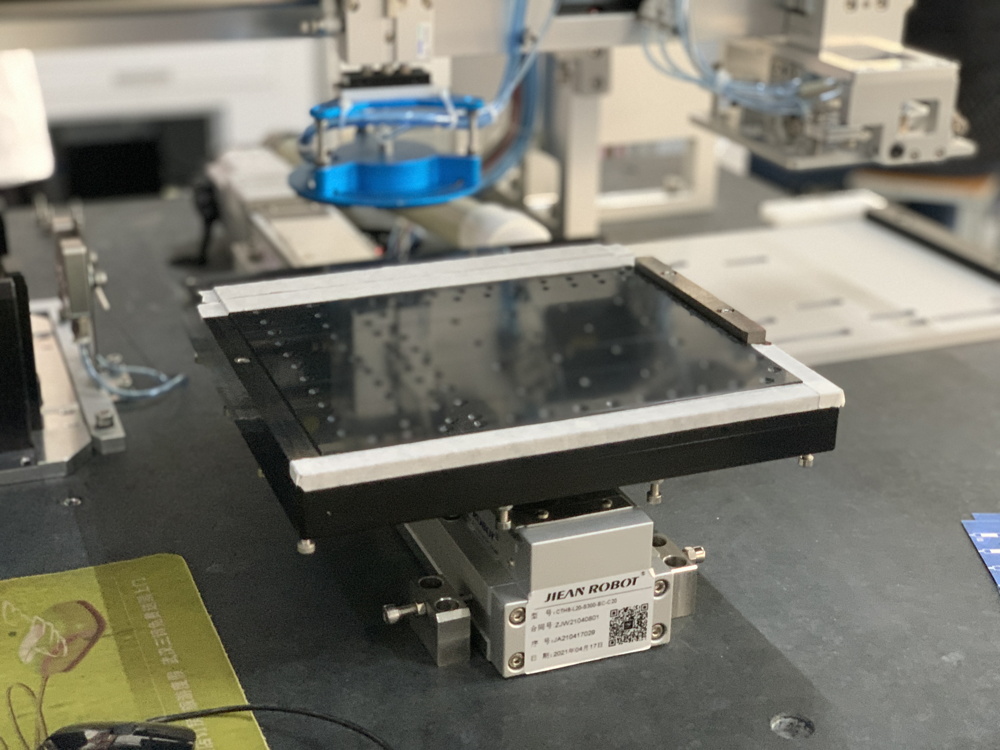

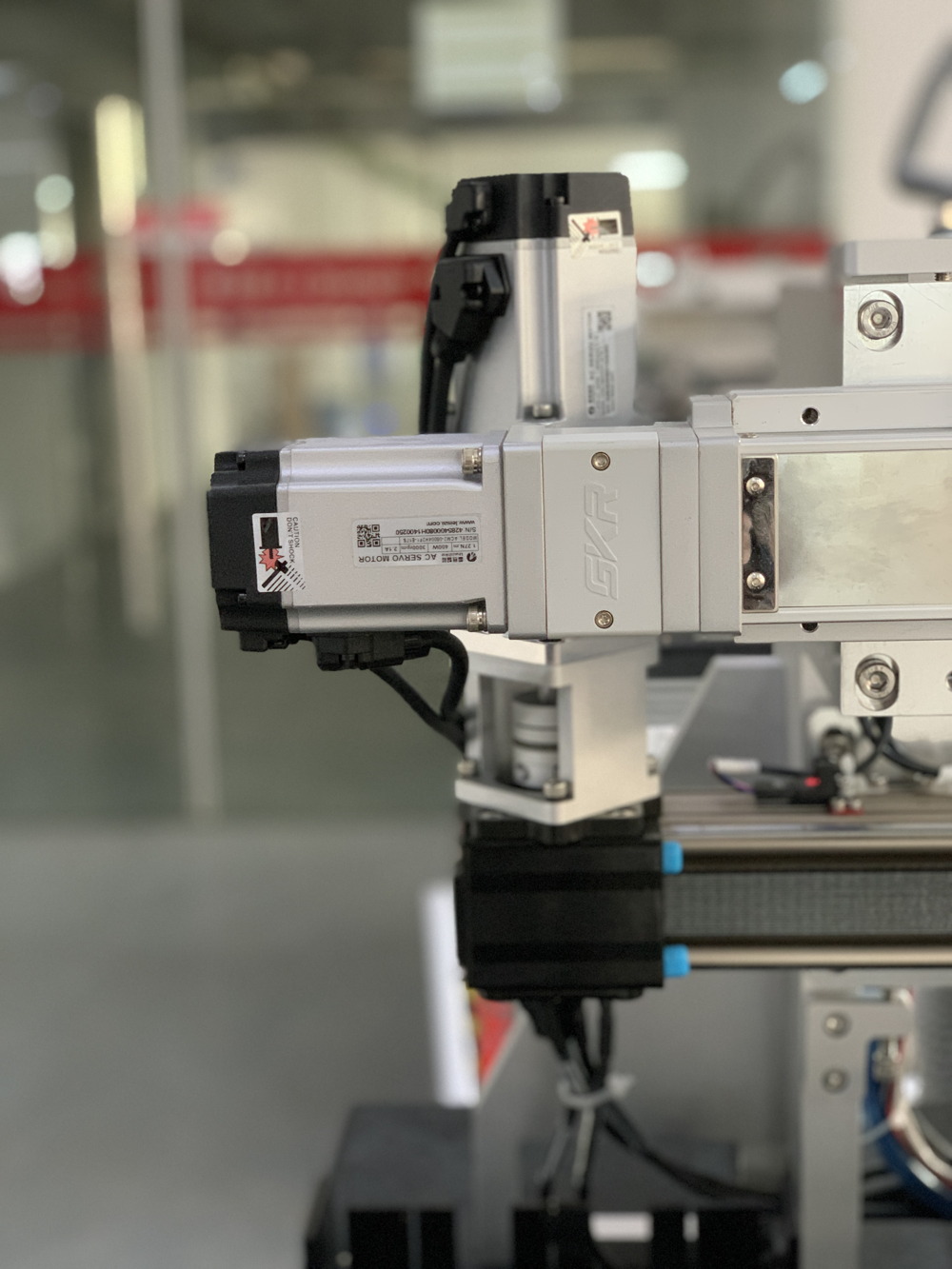

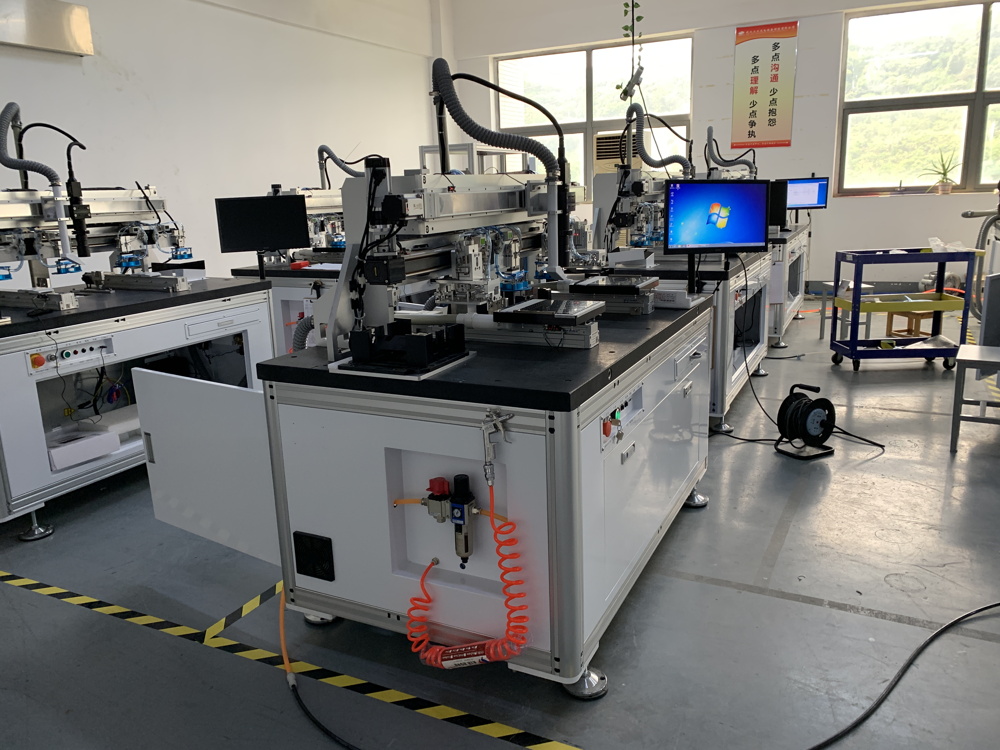

Detail picture


solar cell cutting machine

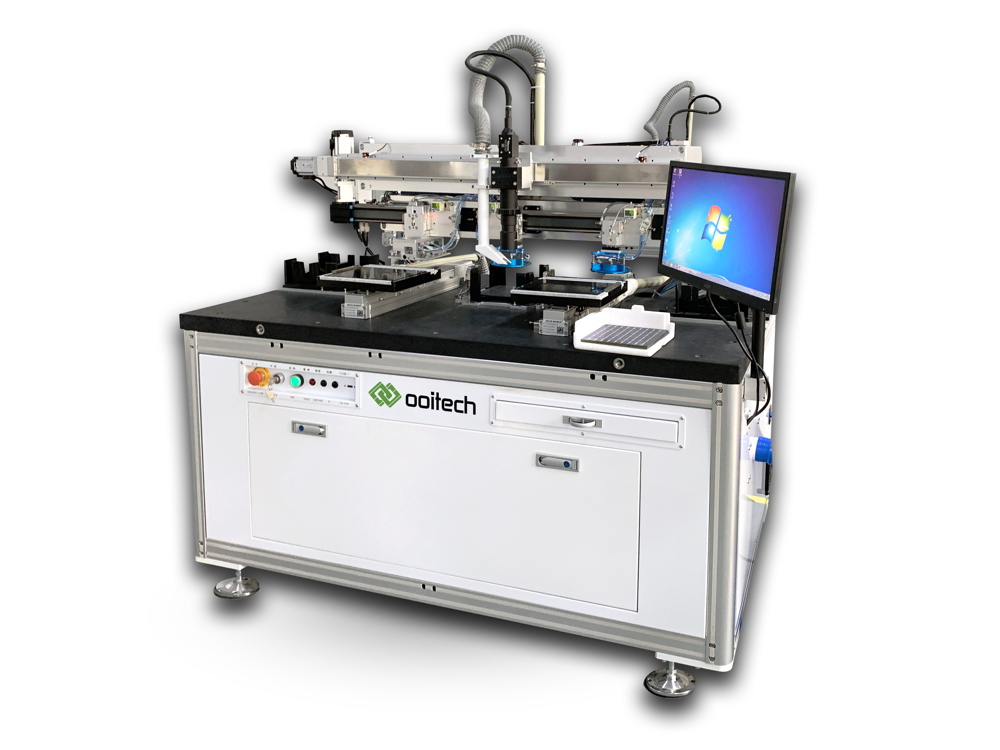

Solar Cell Laser Scribing Machine

In 2021, our company has launched a new no water non-destructive solar cell laser scribing machine. For details, please click solar cell no water non-destructive laser scribing machine.
